Question 10

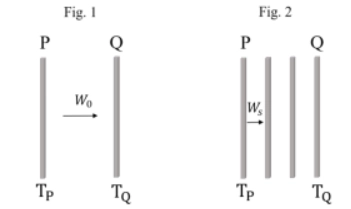

Two identical plates P and Q, radiating as perfect black bodies, are kept in vacuum at constant absolute temperatures $T_P$ and $T_Q$, respectively, with $T_Q < T_P$, as shown in Fig. 1. The radiated power transferred per unit area from P to Q is $W_0$. Subsequently, two more plates, identical to P and Q, are introduced between P and Q, as shown in Fig. 2. Assume that heat transfer takes place only between adjacent plates. If the power transferred per unit area in the direction from P to Q (Fig. 2) in the steady state is $W_S$, then the ratio $\frac{W_0}{W_S}$ is ___
